CNC Glass Vertical Working Center

Brief Introduction

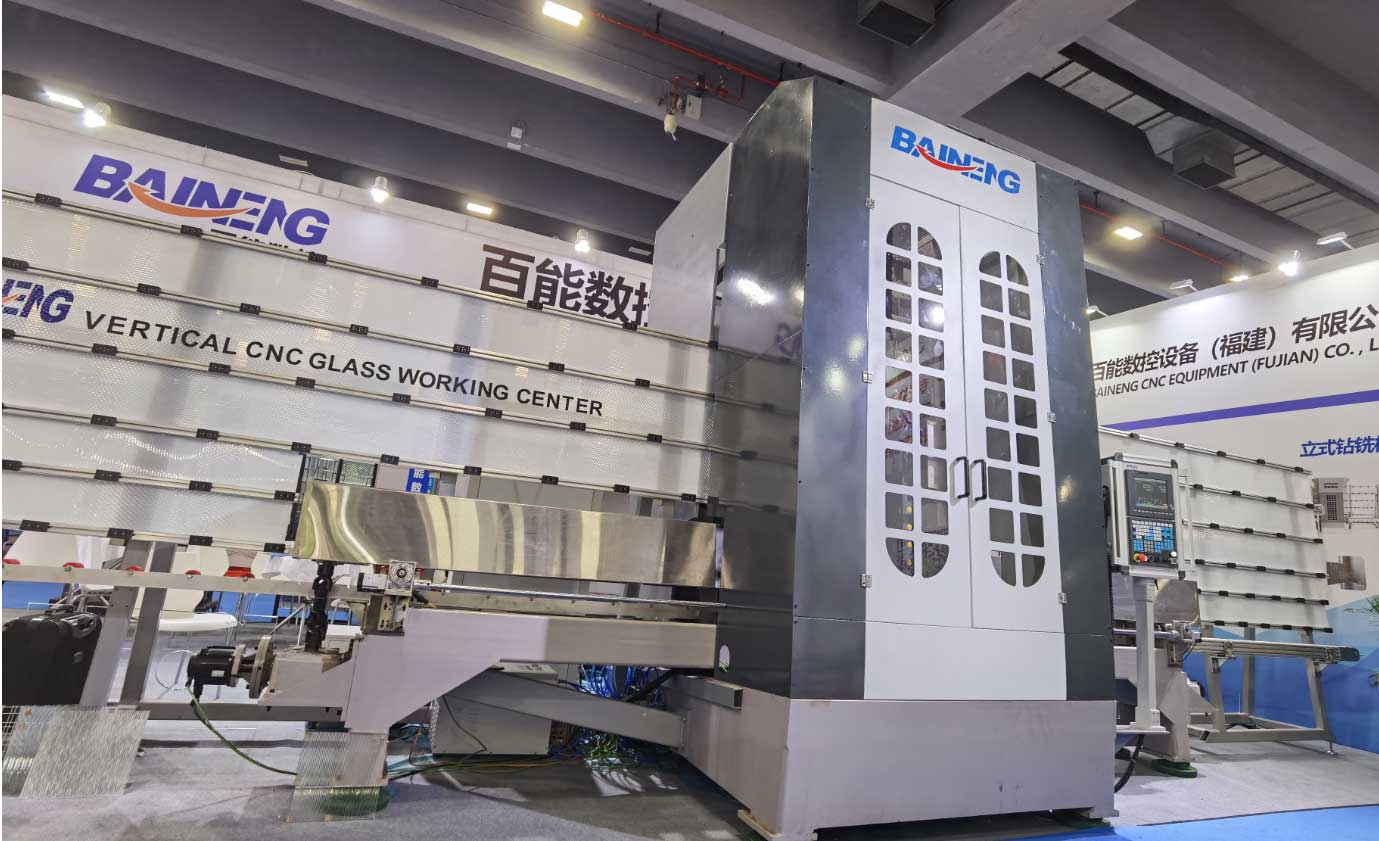

Baineng VERTICAL GLASS WORKING CENTER MACHINE is a high technology machine which adopt the most advanced numerical control system.It’s the best choice for customers who requires high precision,high processing speed and easy operation.It’s the best solution for Edges,holes,notches, cutouts,polishing.etc.It’s the first choice for mass production for frameless shower doors,glass curtain wall.etc.

Advantage

1,It’s adopt advanced numerical control system with high efficiency and easy operating,which satisfy customer’s requirement for processing precision and good quality.

2,Software:Software is developed by our engineer team.It has common patterns in the system.So you only need to input the parameter then the best route is generated automatically.

3,3Axis construction:It has 5 axis processing construction which can process inside/outside Edging,drilling,milling ,notching,polishing …in one operation.The machine with two spindle heads,its processing on two sides and equips water cooling electric spindle,with max output power 7.5kw and the highest rotating speed 12000rpm,it’s not only improve working efficiency but also ensure the processing precision.

4,This is vertical type machine,it’s not only occupied less area to set machine but also convenient to load and unload glass.

Functions: The machine can process as following, Inside/Outside Edging, Drilling, Milling, Cutting/Shape Cutting, Chamfering, Polishing

Application

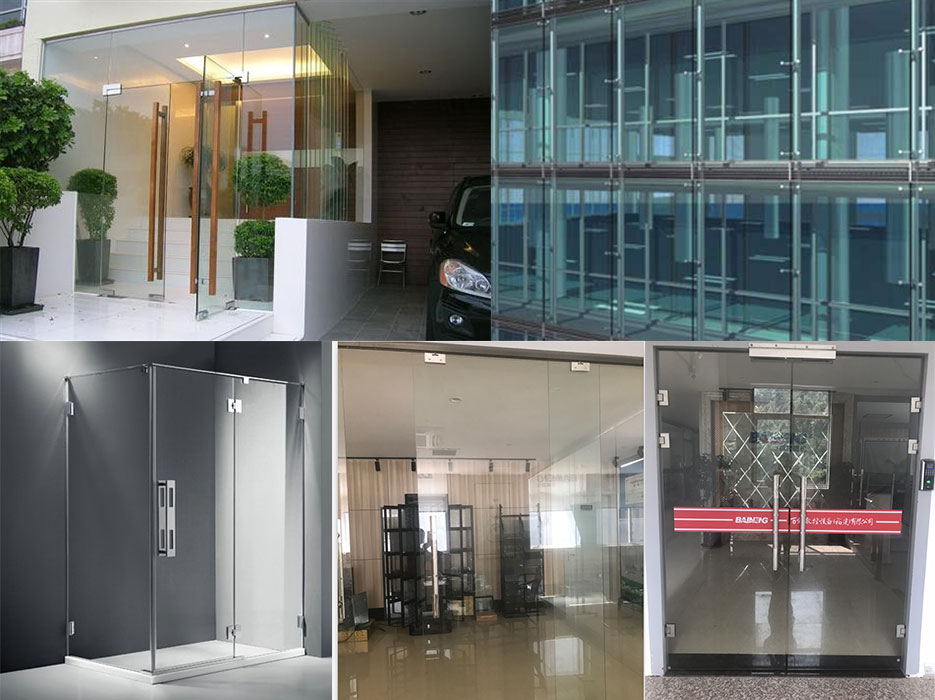

The machine is suitable for all kinds of frameless shower doors, Sliding Doors, glass walls, etc. It is the best choice to save labor and material costs,highly improve working efficiency.

Prepare for Training and installation

1)Prepare 8pcs steel plates in size300*300*5mm.Put the plates to the bearing feet of machine.

2)Compressed air to 0.7-0.8MPA or Prepare Air Compressor.

3)Air Pipe in 10mm Diameter(Length will according to installation space).

4)Power Circuit:3*6² & 2*4²(Length will according to installation space)

5)Independent power control circuit breaker(3P45A)

6)A 10-20tons Jack Lifting(Adjust the level of machine).

7)Windows7 with 32bits computer
